HM020-18Q-3000-AL___GSC20C-18-AL-CAB30

Schleifring Datenblatt

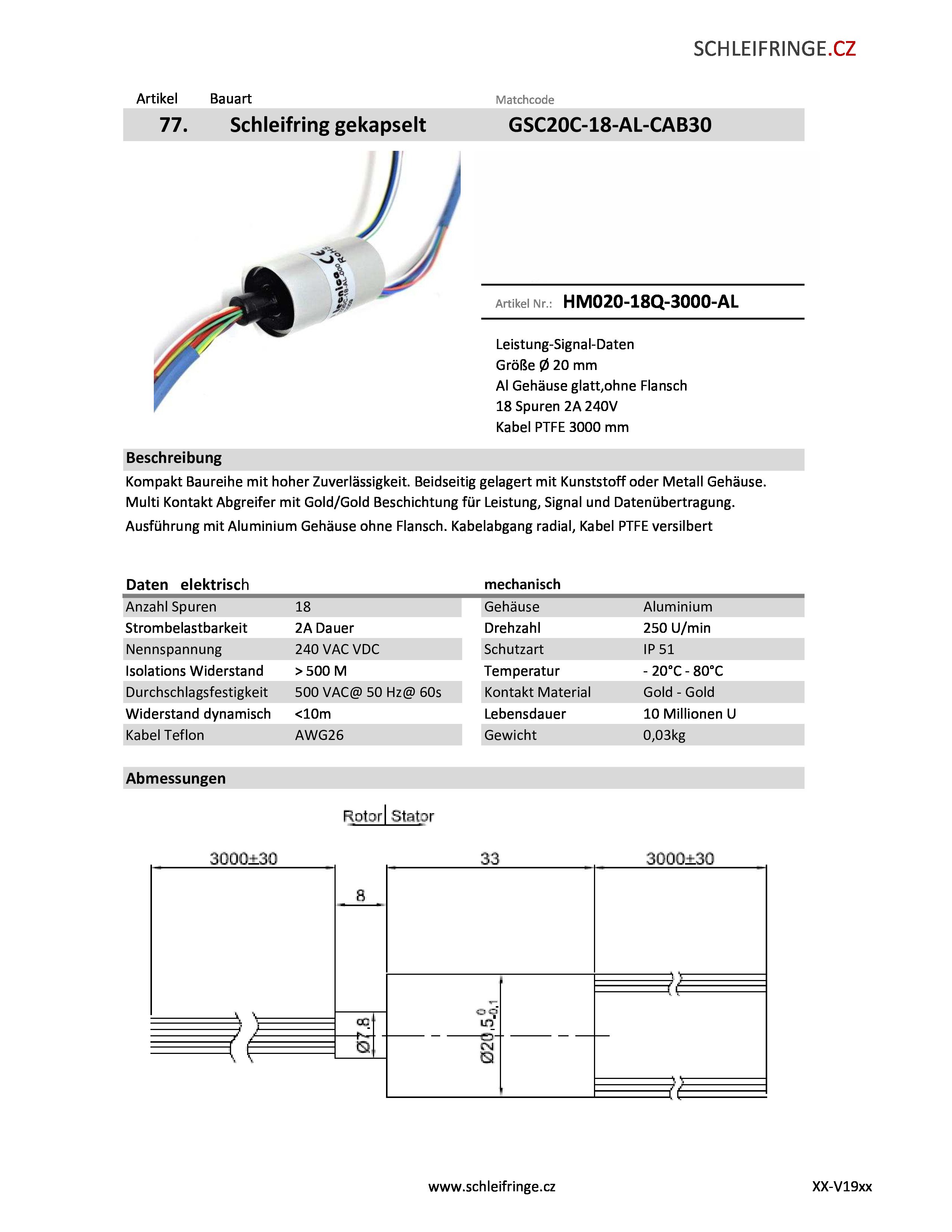

Schleifring HM020-18Q-3000-AL___GSC20C-18-AL-CAB30 Datenblatt

Schleifring HM020-18Q-3000-AL - Technische Daten

Number of rings18rings
Rated Current2A/ring
Rated Voltage0-240VDC/VAC
Insulation Resistance2500 M Ohm/500VDC
Dielectric Strength500VAC@60Hz,60s
Dynamic Resistance<10m Ohm
Contact MaterialPrecious metal
Structure MaterialAluminium alloy

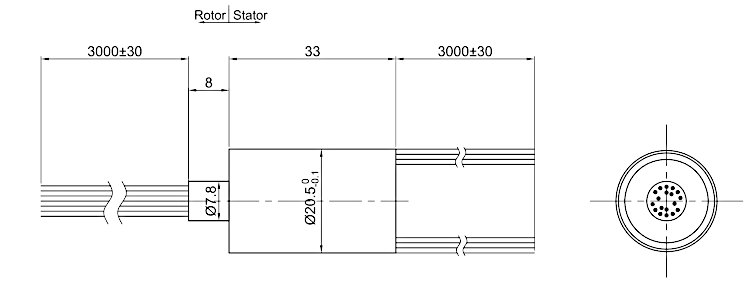

Schleifring HM020-18Q-3000-AL - Zeichnung

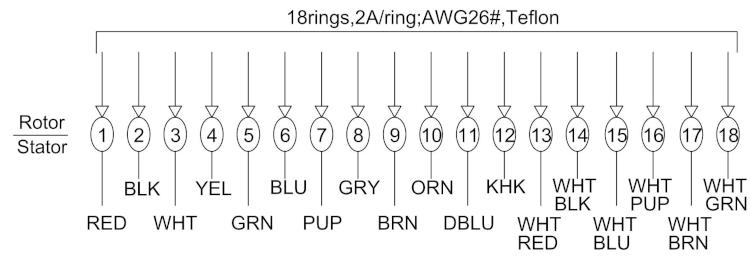

Schleifring HM020-18Q-3000-AL - Kabelfarben
